Exact solutions: New equilibria

These plots show “newbies” uNB, uNB2, and uEQ5, three of the 8 new equilibria found by Gibson, Halcrow, and Cvitanović (see arXiv.org:0808.3375):

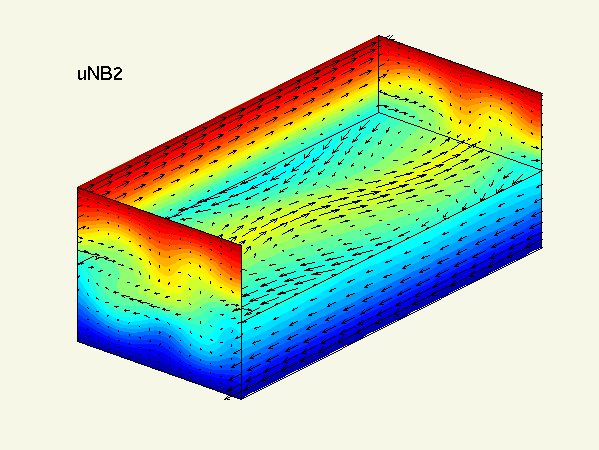

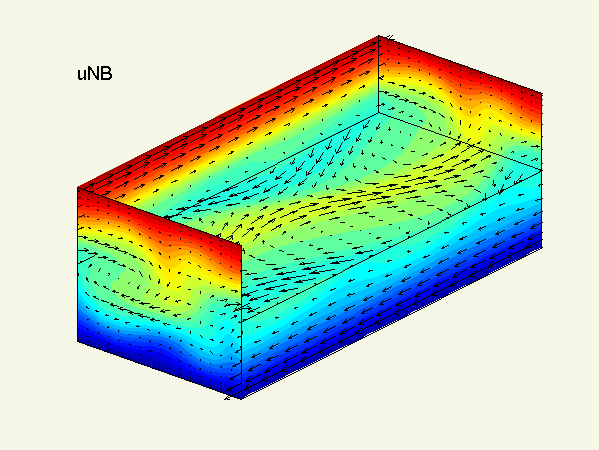

[newbie equilibrium] [newbie #2 equilibrium]

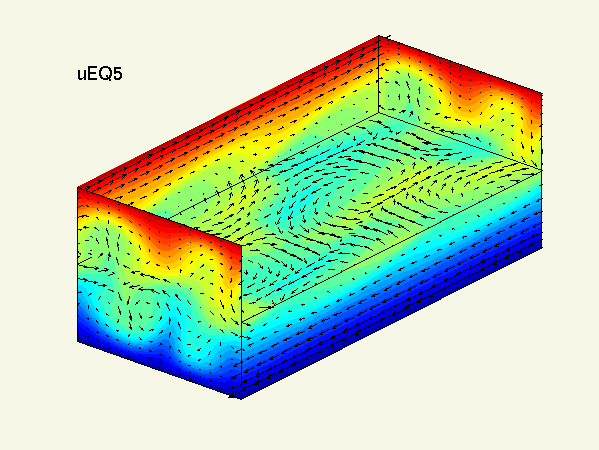

[equilibrium #5]
Two observations:
  1. Even though they are steady in time, these are highly convoluted velocity field configurations
  2. Close passes to these equilibria are evident in the movies on previous pages
